Die Head of Extrusion

15% Cheaper than Alibaba

OEM/ODM Available

1 by 1 Quality Inspection

We Have Abundant Product Categories Ready for You

Whether you want stock or customized products, we can offer them.

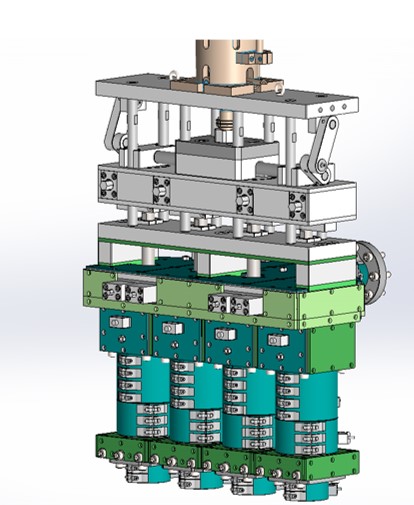

4 fold Monolayer head for soy sauce bottle or detergent bottle

4 fold Monolayer head for soy sauce bottle or detergent bottle

Spiral Head for MFI >20.

Max. die Size: 115mm

Can get for View Stripe

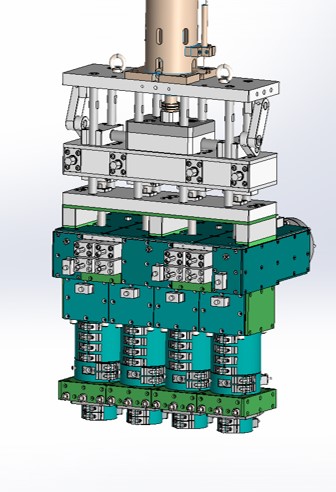

4-fold 2-layer head for soy sauce or detergent bottle

Spiral Head for MFI >20.

Max. die Size: 110mm

Can get View Stripe

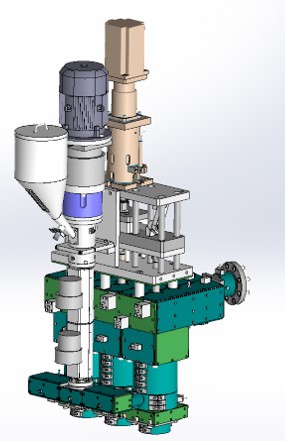

3-fold 2-layer head for Soy Sauce or detergent bottle

Spiral Head for MFI >20.

Max. die Size: 160mm

View Stripe

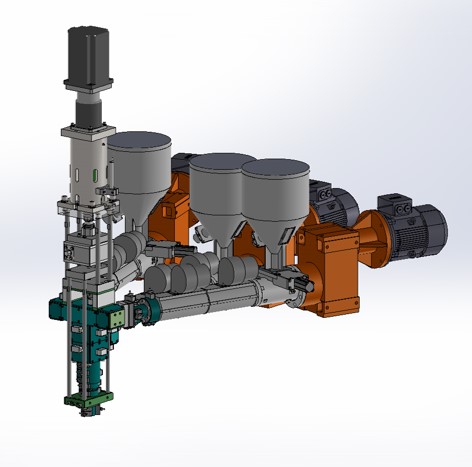

1 fold 3-layer head for PRP

Spiral Head for MFI >20.
Max. die Size: 70mm

Special head with a broad process window for many materials

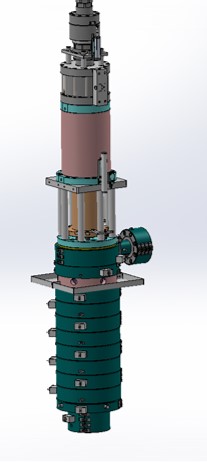

12 Liter Accumulator head

Heart Curve Head for MFI >6.

Max. die Size: 250mm

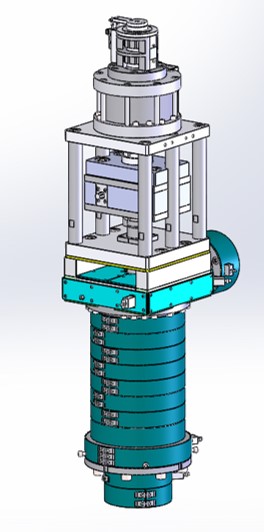

200mm head, 280 mm head

Heart Curve Head for MFI >2.

Max. die size: 200 / 280 mm

Standard Jerry Can Head for stiff materials with low MFI.

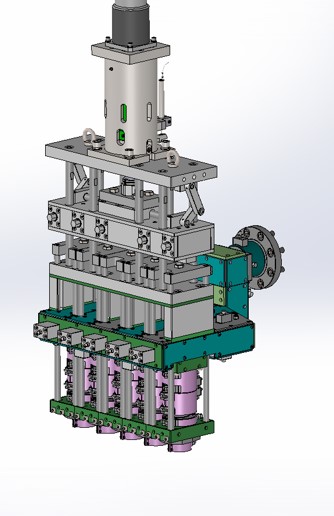

5 Fold HDPE Head

5 fold HDPE head

Standard Spiral Head for French customer.

max die size 70mm

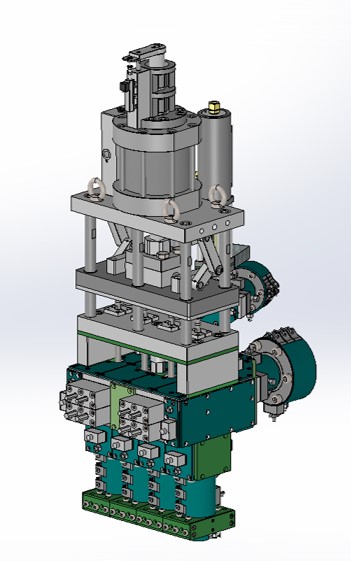

Die head for two color bottle with sequential coextrusion

Die head for two color bottle with sequential coextrusion

  • First in/ first out (FIFO) accumulator for small volumes
  • 60mm main extruder
  • 30mm small extruder
  • Throttles for every layer and cavity
  • Direct adjustment of die gap without worm gear
  • Hydraulic WTC
  • Centre distance 100mm
  • The extruder-screws can be same as HDPE screws, but we will have a reduced output with PP (about 20% less)

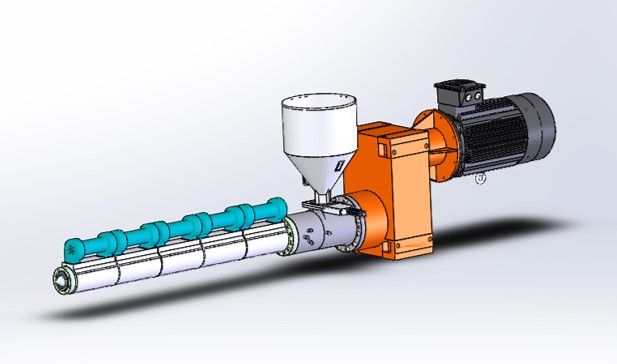

Extruder Family for 25 D with grooved bush

Extruder Family for 25 D with grooved bush

  • 30mm
  • 40mm
  • 50mm
  • 60mm
  • 70mm
  • 80mm
  • 90mm
  • 100mm
  • 110mm
  • 120mm
  • 130mm

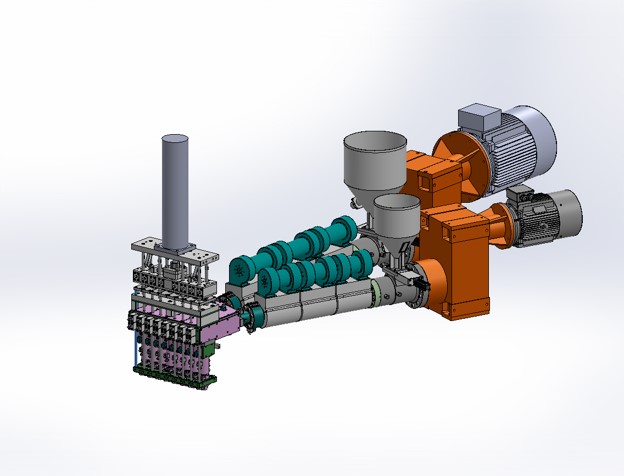

8 fold 2-layer head

8 fold 2-layer head

Min centre distance : 80mm

Max die size: 40mm

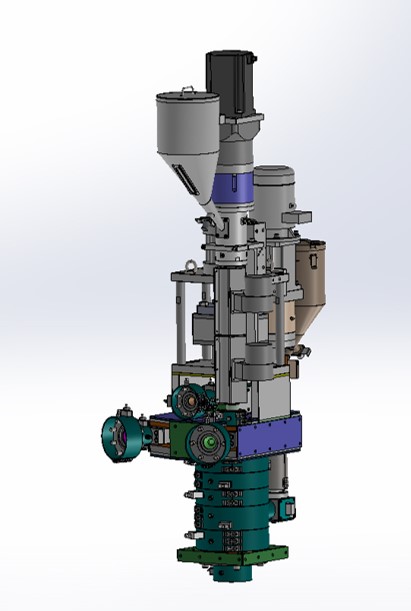

Head for 10 liter container with 4 layers

Head for 10 liter container with 4 layers

Max die size 160mm

Heart curve + spiral

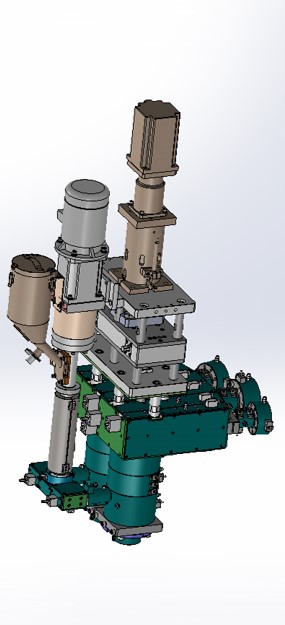

Head for 5 Liter Container with 3 Layers and View Stripe

Head for 5 liter container with 3 layers and view stripe

Hearth curve, suitable for low MFI

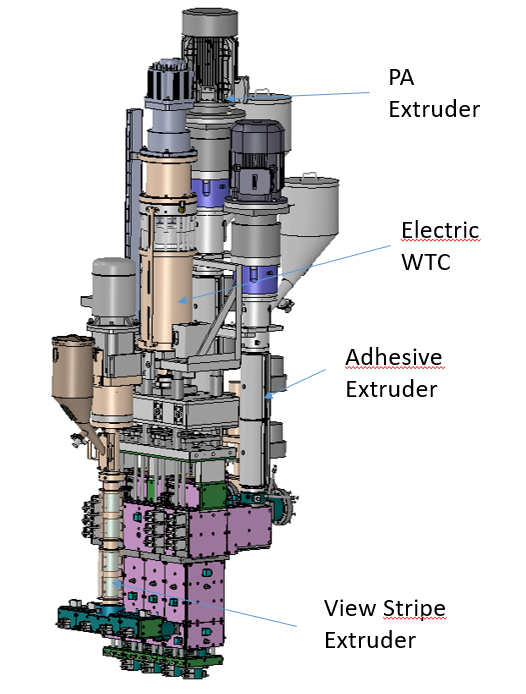

4 layer 4 fold

4 layer 4 fold

Total weight: 2,5 ton.

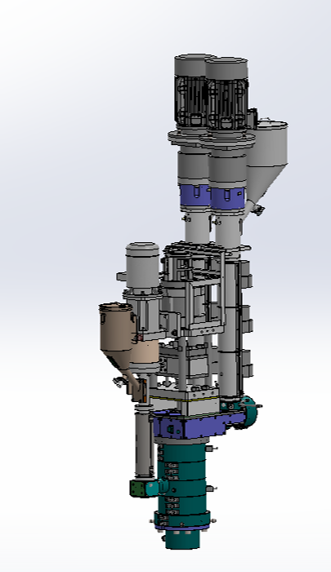

20 liter 3 layer with VS Single station throughput

20 liter 3 layer with VS Single station throughput

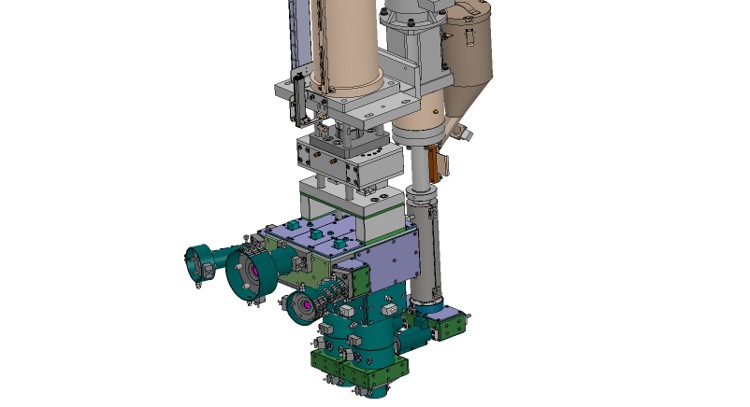

3 layer 2 fold CD160- 70 mm max die size

3 layer 2 fold CD160- 70 mm max die size

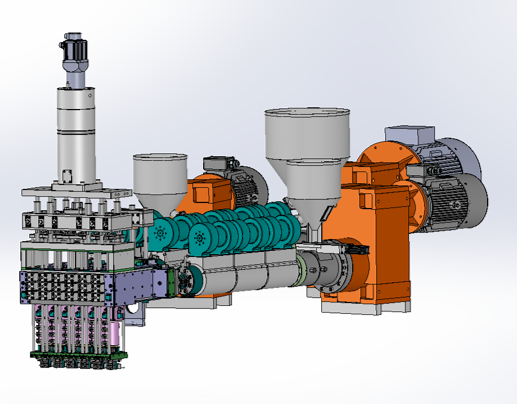

6 fold 3 layer cd100 max die size 55

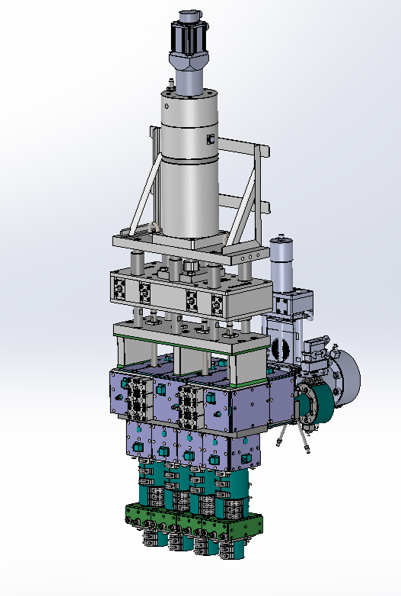

3 layer 4 fold cd150, max die size 90mm
